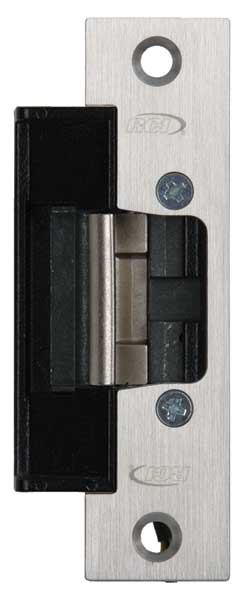

6 Series Electric Strike
Available from Rutherford Controls Int'l Corp. (RCI)
RCI’s ”all-in-one“ 6 Series electric strike combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors. An optional monitor switch is also available. The L65 Low Profile version accepts 1/2” or 5/8” latch projection (perfect for narrow stile aluminum frames). The S65 Standard version is ideal when you require 3/4" latch projection. Not only will installations be faster and easier, distributors and installers can cut their strike inventory significantly, because one strike does it all!
• Field selectable lock mode – choose fail locked or fail unlocked with the turn of a dial (Fail unlocked mode
requires DC voltage)
• Field selectable voltage input – accommodates 12 or 24VDC and 12 to 24VAC (even 16VAC) in one strike!
• 1/4” Horizontal Adjustment
• Dual Monitor Switch (optional)
• Modular “plug-in” wire connectors for
• Modular faceplate designs for a variety
of frame types and cut outs
• 1-3/16” (S), 1-1/16” (L) frame depth
• Universal model includes 3 faceplates
(04/14/08) L65U / S65U
• Stainless steel faceplate
• Trim Plate Included
