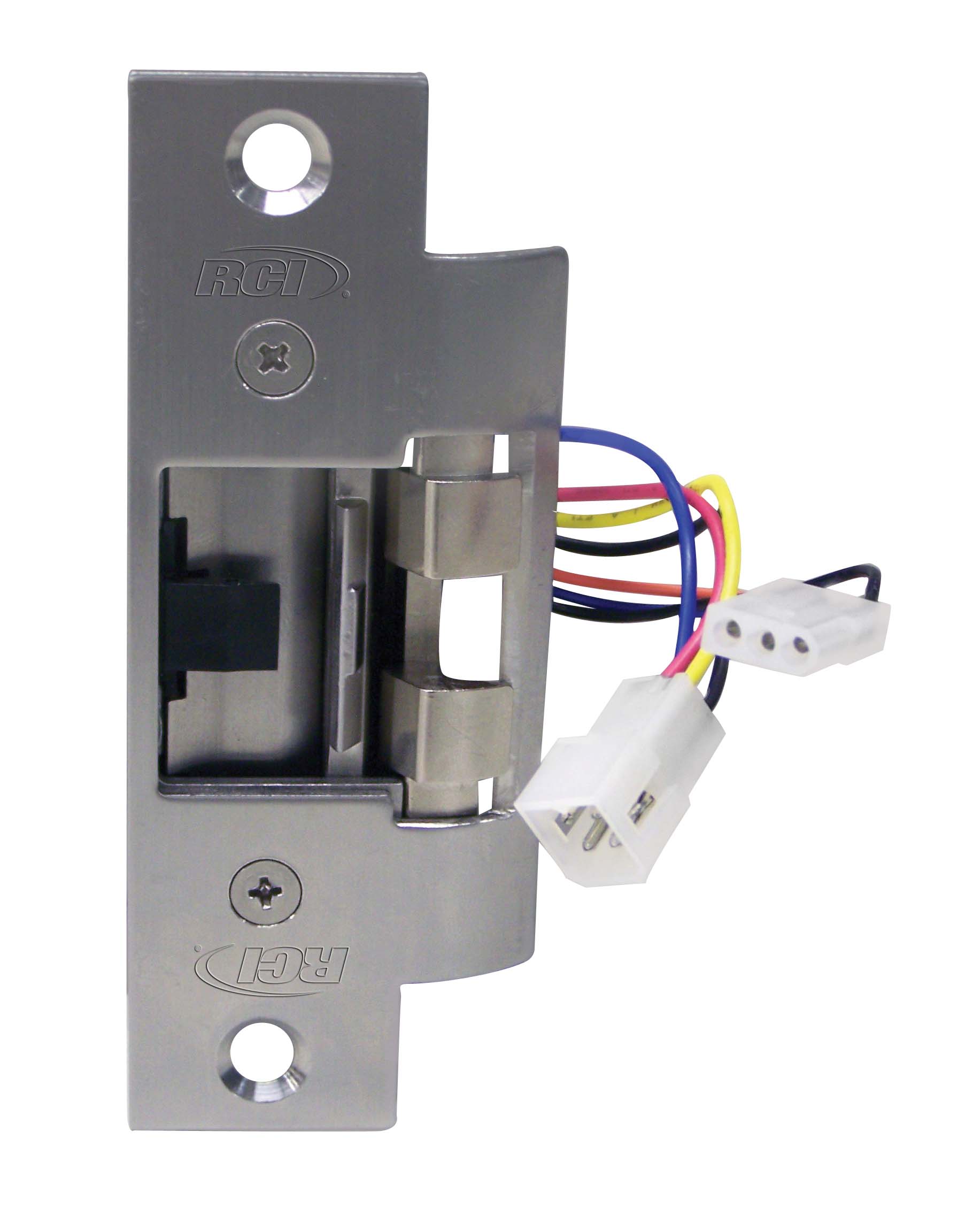

5 Series Electric Strike

Product Details

Designed to fit perfectly into a standard ANSI frame prep, the 5 Series Easy Mount Strikes do not require any frame cutting. With a strike body depth of less than one inch, no modifications to the dust box are needed either, (excluding the need for a wire access hole on the dust cover). Simply remove the standard mechanical plate and replace it with the 5 Series Easy Mount. The 5 Series installs easily and sits completely hidden in the door frame, delivering a clean and aesthetically pleasing, finished look.
No frame cutting required
• Strike body depth is less than
one inch - requires no modification
to the dust box
• Field selectable Fail Locked/
Unlocked
• Field selectable 12 or 24VDC and
12 to 24VAC
• Vertical adjustment of 5/16” to
accommodate misalignment of
doors and frames
• Works with all major cylindrical
lock brands with 1/2” latch
projection
• Non-handed
• Plug-in wire connectors
• Optional Latch Monitor
• Mounting tabs and tamper-resistant
screws included
• Brushed Stainless Steel faceplate
