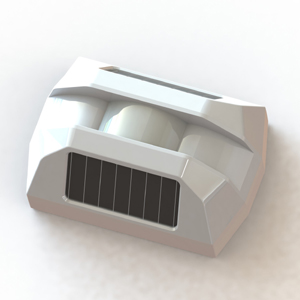

Solar-Powered Wireless Curtain PIR Detector HB-T201

Product Details

1.Solar energy charging design, no need of external power line, the design life is 10 years.
2.Standby current is as small as μA stage.
3.Strong anti-interference capability for disturbances of electromagnetic, strong light, small pets , low false alarm rate;
4. Sensitivity of sensor is adjustable, automatic temperature compensation;
5.One-way, two-way alarm mode are optional; at the one-way alarm mode, return time can be adjusted
6. Streamlined design, flexible and convenient installation, can be installed on wall, ceiling and etc.
7. Work with FM + FH signal , no need of external signal line
8. Use FM + FH signal , solve problem of the wireless signal is easy to be interference and wrong collection false alarm.
9. Has the function of fault self check, and report the fault to the host.
Use for window, balcony, corridor, etc
Solar panels voltage: 5V
Emergency power supply: one 3.6V lithium battery
Alarm current: ≤60mA
Standby current: ≤40μA
detecting angle: Horizontal 4°，Vertical 100°
Detecting distance:≥8m
Wireless transmitting distance: ≥700m
transmitting time:5s
work environment temperature range:-10～+55℃
wireless transmitting frequency: 433Mhz FH
environment temperature range: -25～+65℃
Product Specification: 115×80×50mm
Please choose same brand HB solar beams alarm host for wireless compatible or using wireless to wired adapter for third party wired alarm host.
The wireless alarm host model is HB-MFR, HB-4040G, HB-G100, HB-BJQ-560B
