Product Details

Microwave barrier develops an electromagnetic beam using high frequency microwaves that passes from a transmitter to a receiver, creating an invisible but sensitive protection wall. When the receiver detects a difference of condition within its beam, it begins a detailed analysis of the situation that, if considered a real intrusion, provides an alarm signal that can be treated in digital form.

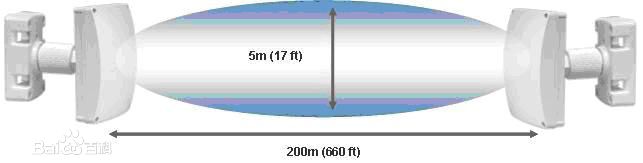

The difference of Microwave Barrier and infrared barrier is the protection area and environment endurance. On these two aspects, Microwave Barrier performs better than Infrared Barrier. Microwave Barrier can form a cubic protection space and not just a line. The space is about 2.5m *5m and can be adjustable. Microwave Barrier can be installed at wall or fence of military sites, air port, power plants where high security requirement is needed.
MCB-150 hard wired Focus brand Microwave Barrier.
MW frequency:10.525GHz
Detection distance:150m
Central barrier area width:5m
Central barrier area height:2.5m
Grass width:0.3m
Snow width:0.5m
Power input:12~18 VDC
Working current
Transmitter:25~30mA,12VDC
Alarm Relay capacity:(N.C.)50mA,20VDC
Alarm time:≤3s
Tamper switch capacity:(N.C.)0.1A,20VDC
Max emitting power:35mW(common);50mW(Max)
Detection speed:0.1~10m/s
Alarm output:≥3s
Temperature:-40℃~+65℃
Humidity:Max 98%
Built-in water-proof equipment, anti-rain/snow 30mm/h
A microwave barrier is one of the most reliable and safe intrusion detectors used for outdoor perimeter protection.
