Beacon explosion proof chemical industry factory gas warning

Product Details

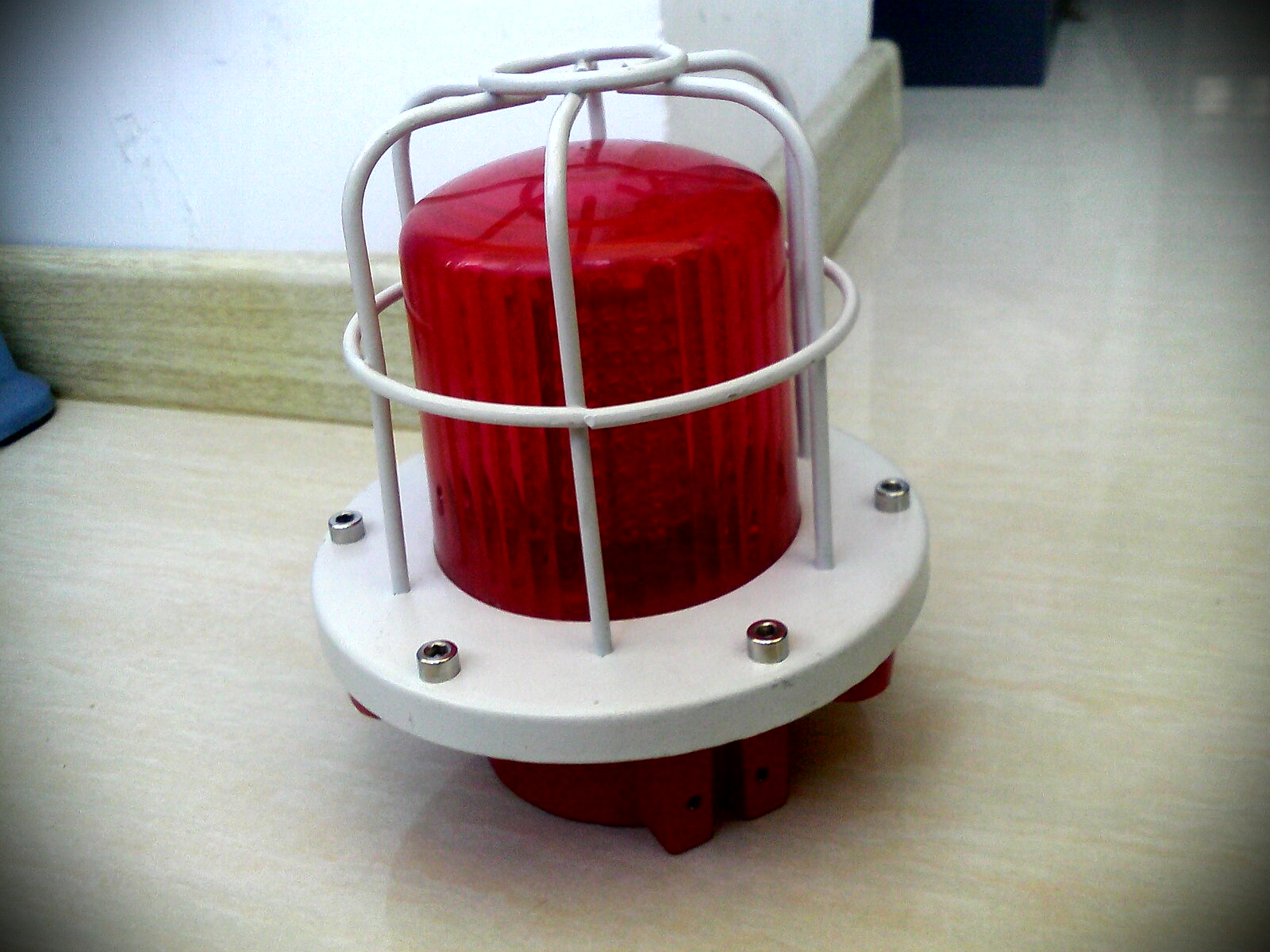

Chemical industry security, oil field security equipment explosion proof beacon alarm lighter.
JDJD-G is Non-coded Fire alarm, security system connection visual alarm with flashing.
JDJD-G can be installed at explosion place with IIC or IIB grade T6 temperature situation.
When incident happens such as combustible gas, toxic gas leakage, the flashing light will be triggered by alarm control panel and make high light flashing. It can be connected with manual call point directly and triggered by manual push alarm.
Specification: Exd(ib) IIC T6, or Exd(ib) IIB T6 explosion proof mark
Dust and water proof: IP65
Working voltage: DC24V or AC 220V
alarm current: <=25mA
Flashing times:60 times/min
Working temperature: -20C to +50C
Relative humidity: <=95%
Working atmospheric pressure: 80kPa to 110kPa
Net weight: 1.17kg

Installing: using M6 screw to fix the flashing light on wall or ceiling. Please refer to the instruction manual to correct the install the alarm system.
