WIRELESS SOUNDER STROBE wireless fire alarm system

Product Details

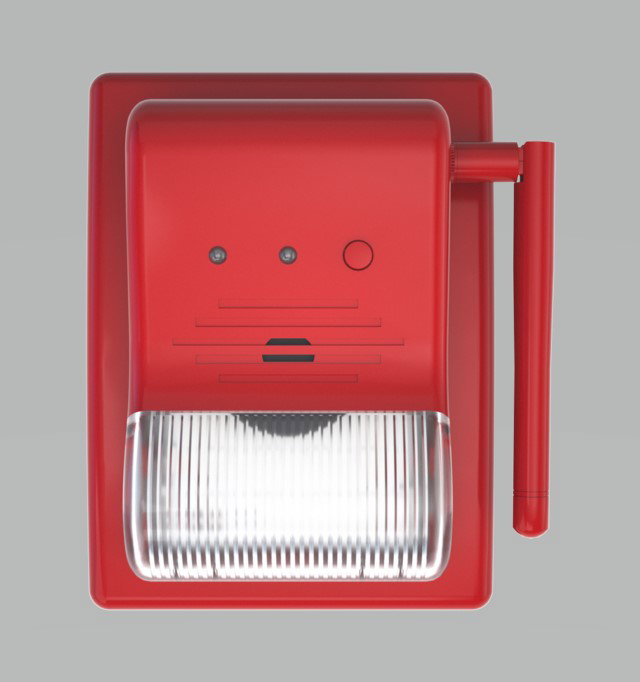

TCSG5416W wireless sounder strobe is suitable for installation in public places, factories and other environments, and is used together with JB-TB- TC5126W wireless fire alarm control panel. When the control panel receives the fire alarm instructions from other fire alarm devices, the control panel starts the alarm through wireless signals, and the alarm sends out sound and light signals to achieve the purpose of audible and visual alarm.
Technical Data
All data is supplied subject to change without notice. Specifications are typical at 24V, 25℃ and 50% RH unless otherwise stated.
Battery CR17450-2-080-02
Rated Operating Voltage DC3V
Operating current monitoring current≤45uA , alarm current≤240mA
Sound level 75dB~115dB
Coding method automatically assigned when networking Radio frequency transmit power<20dBm
Communication method 470MHz FSK coded bidirectional
Operating environment temperature 10℃~+55℃
relative humidity ≤95%
Dimension 101mm*137mm*43mm
Weight 170g
https://www.vedardsecurity.com/wireless-sounder-strobe-p-100
The 470MHz wireless communication technology is adopted, and no embedded wiring is needed, so the engineering installation is convenient and quick; With battery low voltage detection function, it can reflect the battery power situation in time; The microprocessor is used to realize signal processing, and the digital signal is used to communicate with the control panel, which works stabely and reliably, and has a good ability to suppress electromagnetic interference.
